Guy Clamp

Hot Dip Galvanized

Joslyn Guy Clamps are rolled from carbon steel with straight parallel grooves that will not damage guy strand. Offset guy clamps are designed to give increased holding strength. The clamping bolts have special shoulders to prevent turning when the nuts are tightened.

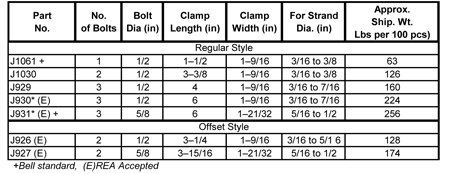

Ordering Information

Style	Catalog #	# of Bolts	Bold Diameter	Clamp Length	Clamp Width	For Strand Diameter	Shipping Weight (Lbs Per 100 Pcs)
Regular	J1061	1	1/2	1-1/2	1-9/16	3/16 to 3/8	63
Regular	J1030	2	1/2	3-3/8	1-9/16	3/16 to 3/8	126
Regular	J929	3	1/2	4	1-9/16	3/16 to 7/16	160
Regular	J930	3	1/2	6	1-9/16	3/16 to 7/16	224
Regular	J931	3	5/8	6	1-21/32	5/16 to 1/2	256
Offset	J926	2	1/2	3-1/4	1-9/16	3/16 to 5/16	128
Offset	J927	2	5/8	3-15/16	1-21/32	5/16 to 1/2	174
